DT526 & DT843
Designed from the ground up to test the modern tractors of today, with
its exclusive features. The Dynotech DT526 is a patent pending dyna-
mometer with the capability of testing 500 horse power @1000 rpm,
with the torque capacity of 2600 lb/ of torque.
The innovation of a large single rotor absorption unit, guarantees
continuous smooth and equal loading during testing, unlike previous
designs using multiple connected rotors.
This design also boasts better cooling efficiency due to its direct cooling
at the point of friction, and the 200 gallon supplemental tank. The large
tank also adds stability to the unit when testing high torque application.
• Single rotor absorption unit dramatically reduces the number of
mechanical components which allows smooth dynamic operation.
• Improved dynamic water sealing reducing long term performance
issues.
• Non-invasive service of drum, maintenance if performed externally.
• Extended maintenance intervals due to advances in brake design and
lubrication technology.
• Large supplemental cooling reservoir with direct cooling at the point
of friction provides maximum test sessions.
• Extended dynamometer shaft provides compensation for through
wall operation, as well as additional operator safety during pto
hookup.
• Ease of control and operation from the rear of the dynamometer
increasing operator comfort and safety.
• Unsurpassed product warranty, pr
• Single rotor absorption unit dramatically reduces the number of
mechanical components which allows smooth dynamic operation.
• Improved dynamic water sealing reducing long term performance
issues.
• Non-invasive service of drum, maintenance if performed externally.
• Extended maintenance intervals due to advances in brake design and
lubrication technology.
• Large supplemental cooling reservoir with direct cooling at the point
of friction provides maximum test sessions.
• Extended dynamometer shaft provides compensation for through
wall operation, as well as additional operator safety during pto
hookup.
• Ease of control and operation from the rear of the dynamometer
increasing operator comfort and safety.
• Unsurpassed product warranty, provided at your request prior to
purchase.
• Automatic water temperature shut down and reset.
• Onboard absorption unit diagnostics using the Power Pro 1000ovided at your request prior to
purchase.
• Automatic water temperature shut down and reset.
• Onboard absorption unit diagnostics using the Power Pro 1000

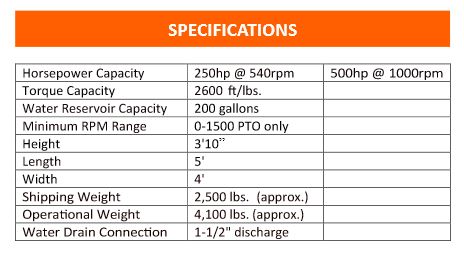

526 Spec

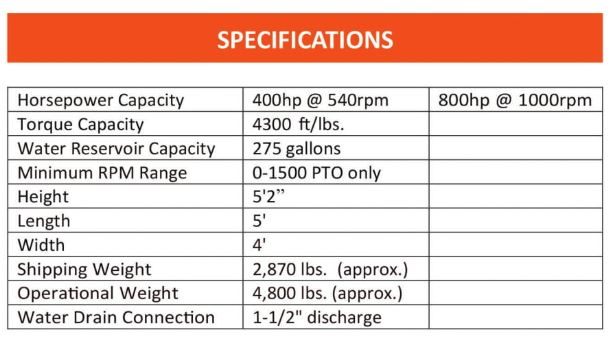

DT843 Spec
Power Pro 1000 System is a simple, modern solution providing reliable
data acquisition of a tractor power performance. Power Pro 1000 is
user friendly and is supported by Windows based operating system.
The tractor power functions of PTO horsepower, PTO speed, ft/lbs of
torque, plus a direct percentage in the measurement of torque rise are
presented in the lower left corner of the display.
Also supported by the Power Pro 1000 display are the vitals of the
dynamometers operating functions, such as, water temperature, hours
of operation, internal vapor pressure, and working hydraulic pressure,
which is a first with this popular design of power absorption units
This system allows the operator to record the customer name, tractor
brand, and tractor model. Once the brand and model have been selected the Power Pro 1000 will retrieve the Nebraska Tractor test specifications for engine and pto high idle rpm and rated rpm from the data
file.
Included with the Power Pro 1000 software are free upgrades on
Nebraska Test Data specifications as they are available
